AAS-VLAF
Engineered to create a particle-free working environment. Two-stage filtration ending in a mini-pleat H-14 HEPA, holding ISO 14644-1 Class 5 across the full work area.
Or WhatsApp +91 98221 17076 — we reply the same working day.

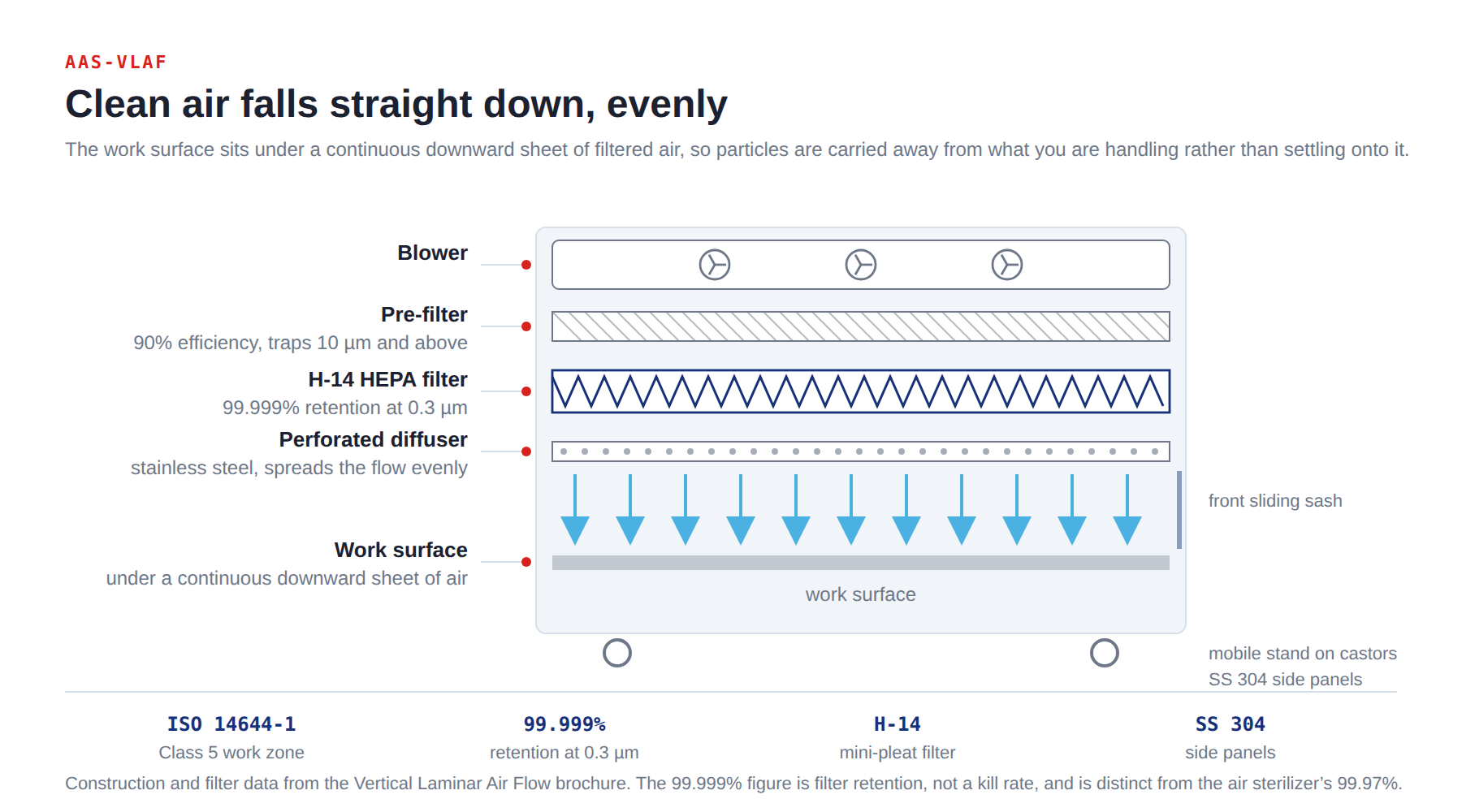

How it works
Laminar means the air moves in parallel, unmixed layers. That only holds if the velocity is uniform across the whole filter face — which is what the diffuser screen is really for.
Room air is taken in from the top of the cabinet through washable HDPE media in an FRP PU or SS 304 frame.
An AAF India supply filter, 99.999% at 0.3 µm to IEST-RP-CC002.4, with air spread evenly across its face.
Protects the HEPA face and holds airflow velocity uniform. Easy disassembly for access through a small door.
Stainless steel 304 side panels and a front sliding sash confine the work area, with room for hands to move.
A Minihelic pressure gauge — Dwyer or Aerosense make — is fitted as standard, so the condition of the filter is something you read, not something you guess at.
A vertical laminar air flow cabinet gives product protection. Filtered air flows down over the work area, so what you are handling is kept in clean air. That is what it is for, and it is what this cabinet does to ISO 14644-1 Class 5.
It is not a biosafety cabinet. It does not protect the operator from what is on the bench, so it is the wrong choice for infectious material or anything hazardous to the person working at it. If that is your application, say so when you call and we will tell you plainly that you need a different machine.
Specifications
Quote the model code AAS-VLAF on your order and you will get exactly this unit. The full brochure is a PDF you can circulate.
| Vertical Laminar Air Flow AAS-VLAF | |
|---|---|
| Pre-filter | 10 µ, 90% efficiency |
| Pre-filter media | Washable HDPE |
| Pre-filter frame | FRP PU or SS 304 |
| Supply filter | Mini pleat HEPA, H-14 |
| Filter efficiency | 99.999% at 0.3 µm |
| Filter standard | IEST-RP-CC002.4 |
| Filter make | AAF India Ltd. |
| Cleanliness | ISO 14644-1 Class 5 |
| Air velocity | 90 FPM ± 20 at 6″ |
| Noise level | Less than 60 dB at 1 m |
| Pressure gauge | Minihelic — Dwyer or Aerosense make |
| Front sash | 6 mm frameless glass (optional) |
| Body material | Anti-microbial powder coated GI, 60–80 µ |
| Body, alternate | Stainless steel 304 grade, 1.2 mm |
| Warranty | 12 months from invoice, manufacturing defects |
Where it is used
Typical placements. Tell us the bench space you have and what you will be handling, and we will confirm the size before quoting.
The rest of the range
Tell us the quantity and the department it is for. Quotes usually go out the same working day, and we will say plainly what the delivery time is.
